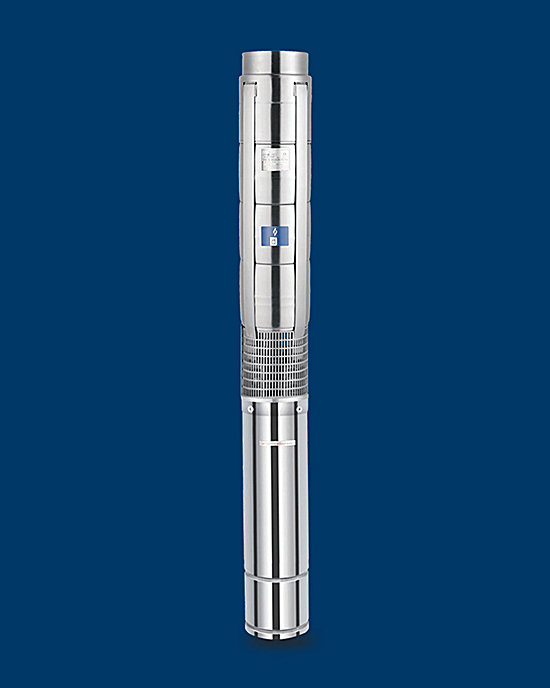

SP Series (with stainless steel impeller)
10SP
MOTOR AND PUMP
①Direct start(1 cable )
②Star-delta start (2 cables )
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 9001
Maximum diameter φ 210mm
OPERATING CONDITIONS
Maximum fluid temperature up to +50℃
Maximum sand content:0.25%
Minimum well diameter:10〞
APPLICATIONS
For water supply from wells or reservoirs
For domestic use ,for civil and industrial applications
Forgarden use and irrigation
OPTIONS ON REQUEST
Special mechanical seal

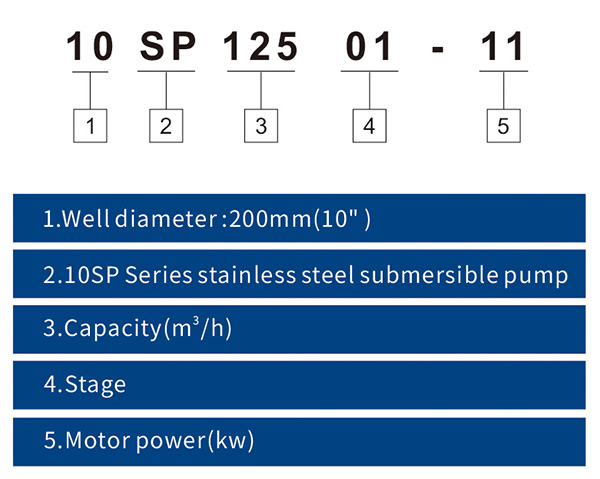

MODEL DESCRIPTION

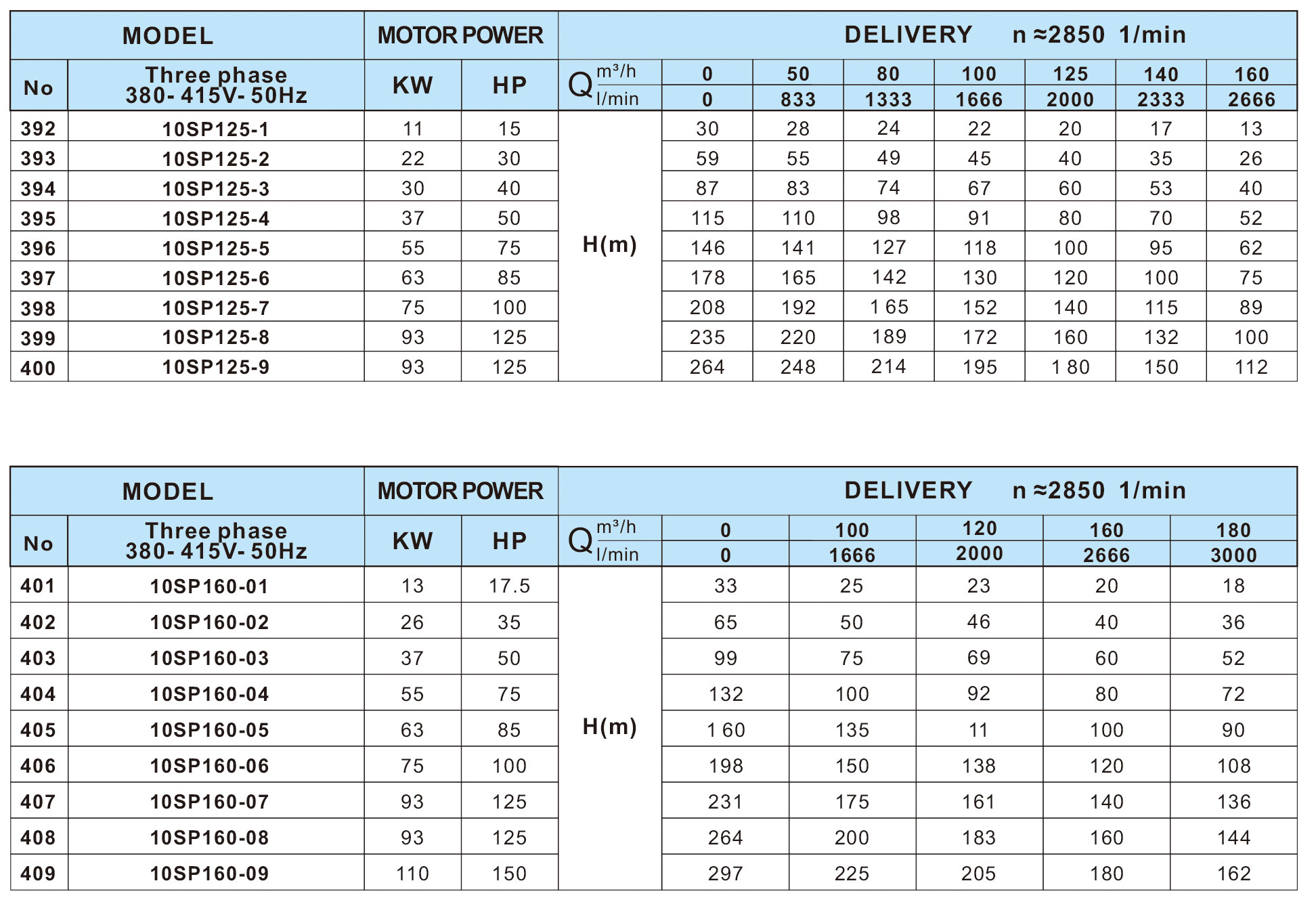

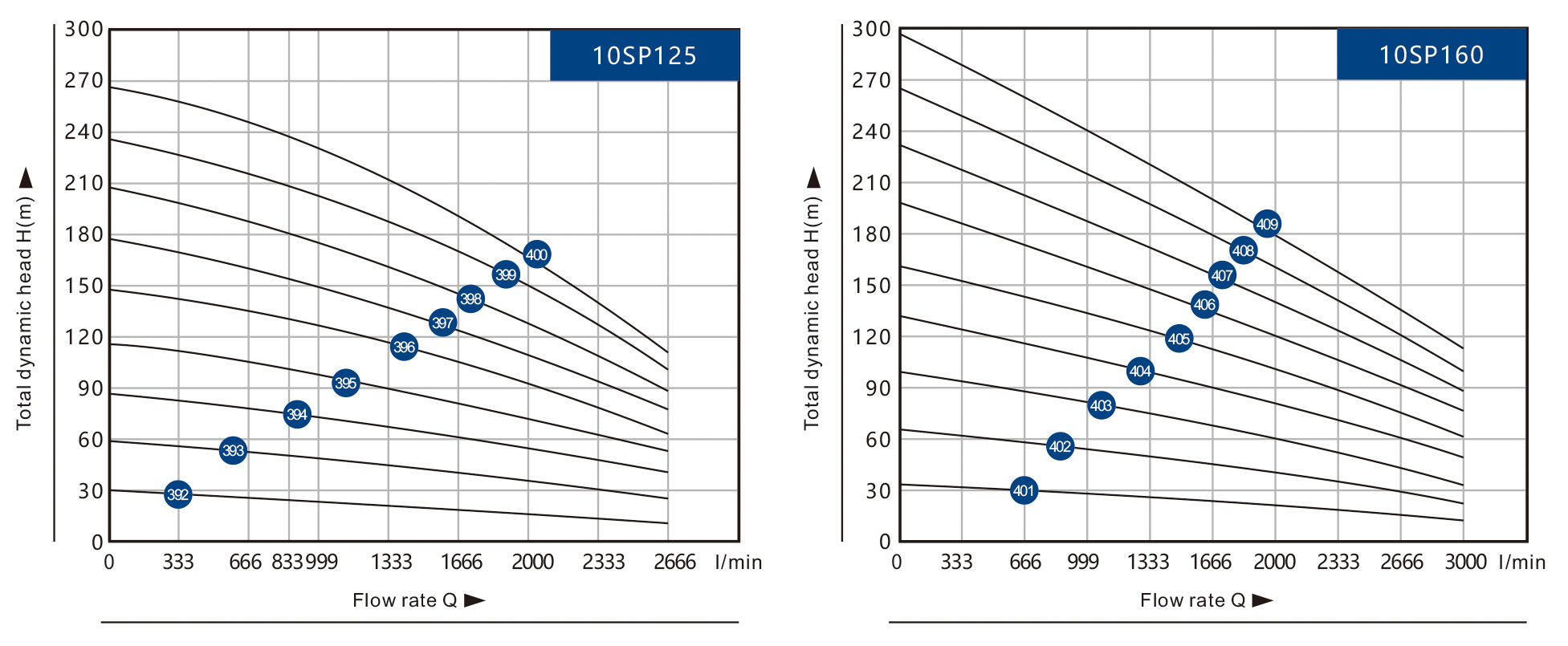

PERFORMANCE DATA 50Hz
