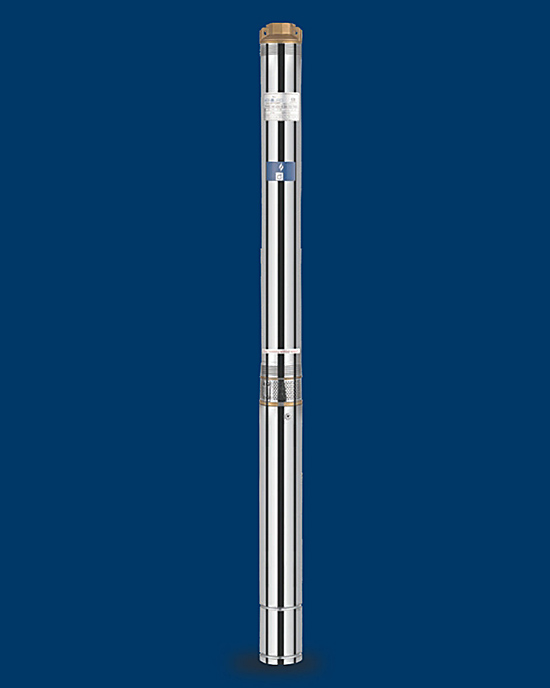

SD Series (with plastic impeller)
2SD/2.5SD
MOTOR AND PUMP
Rewindable motor
Single-phase:220-240V/50Hz
Equip with start control box
Pumps are designed by casing stressed
NEMA dimension standards curve to lerance
according to lSO 9001
OPERATING CONDITIONS
Maximum fluid temperature up to +35℃
Maximum sand content:0.25%
Minimum well diameter:2”
APPLICATIONS
For water supply from wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
OPTIONS ON REQUEST
Special mechanical seal
Single phase motor

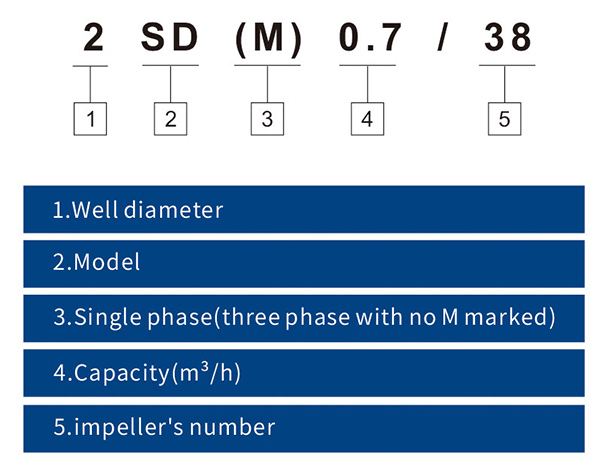

MODEL DESCRIPTION

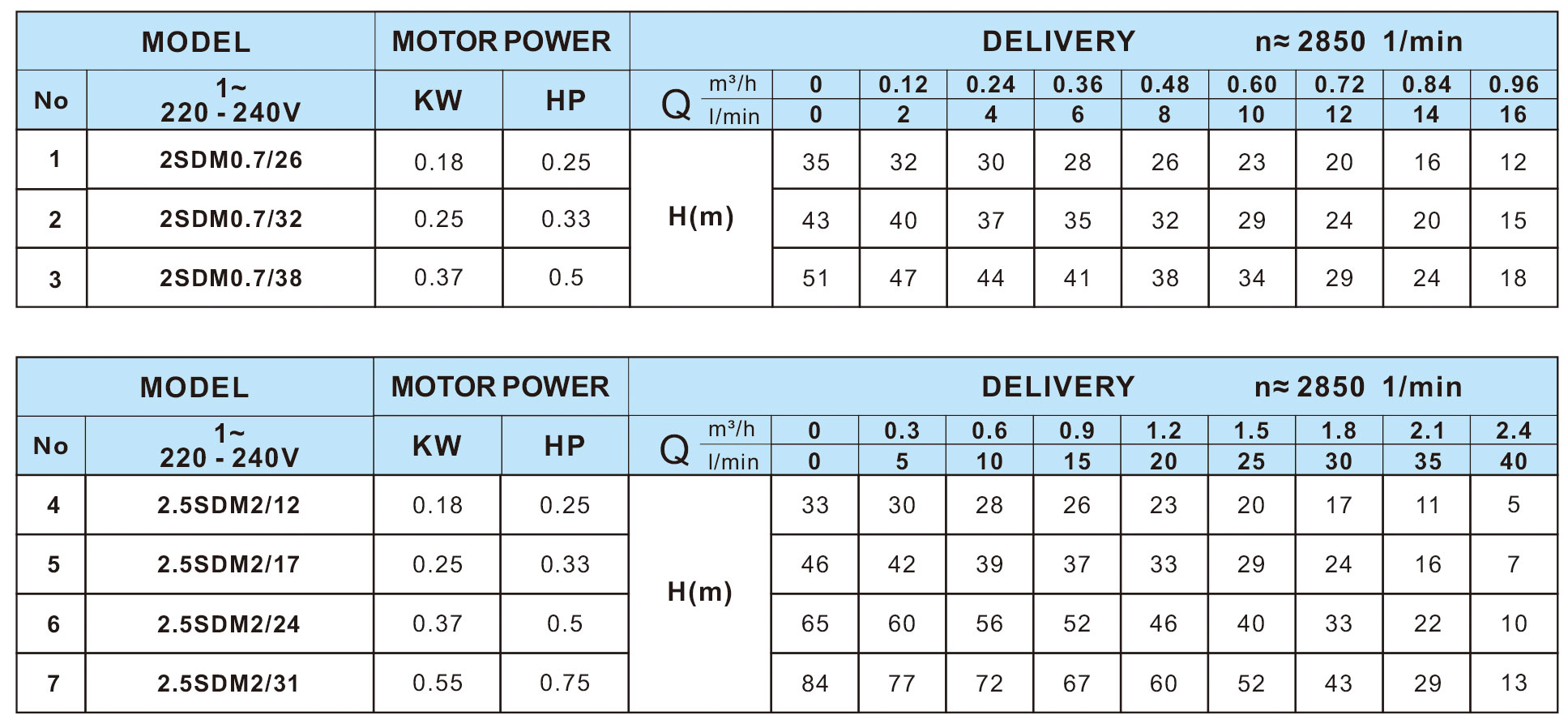

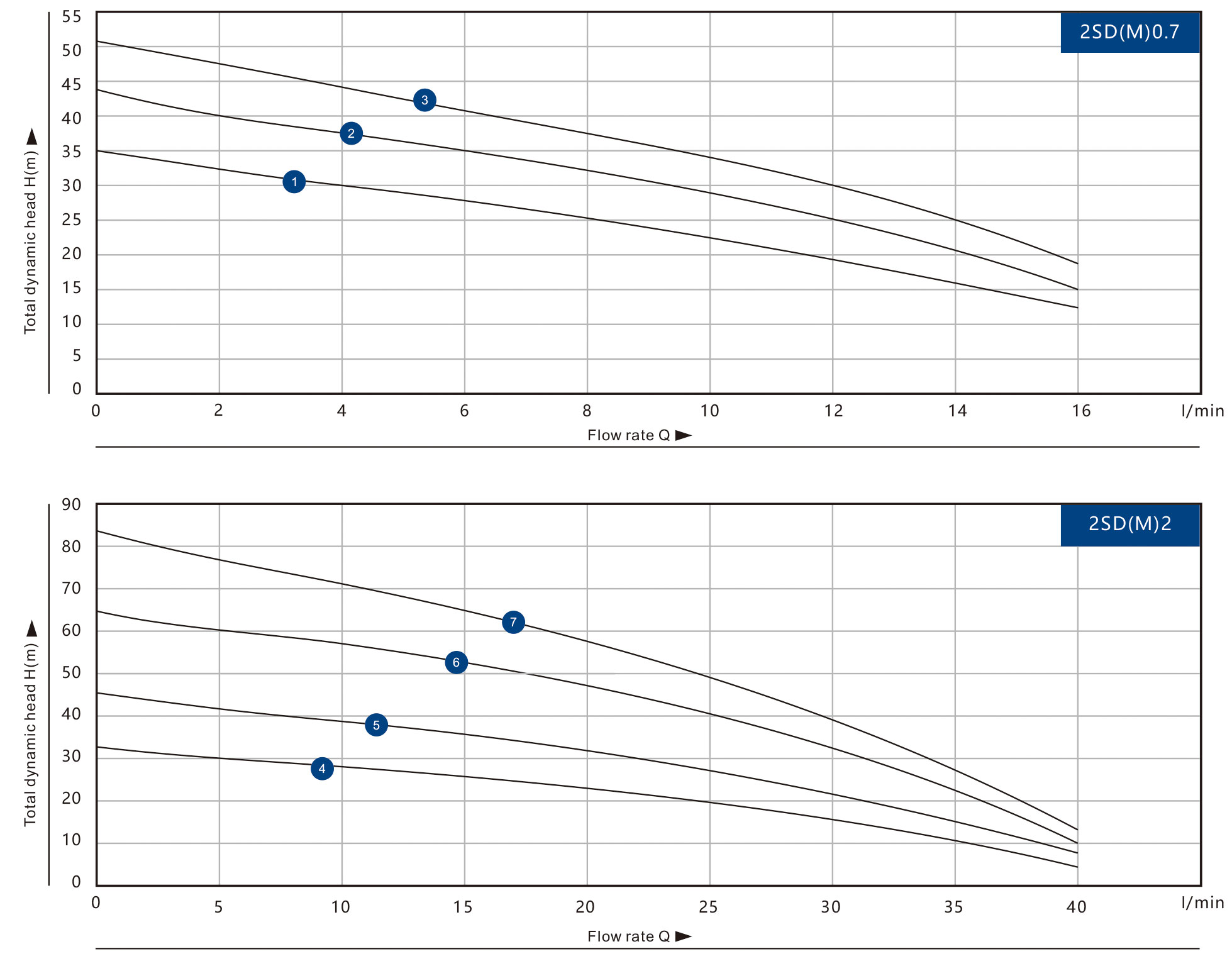

PERFORMANCE DATA 50Hz
