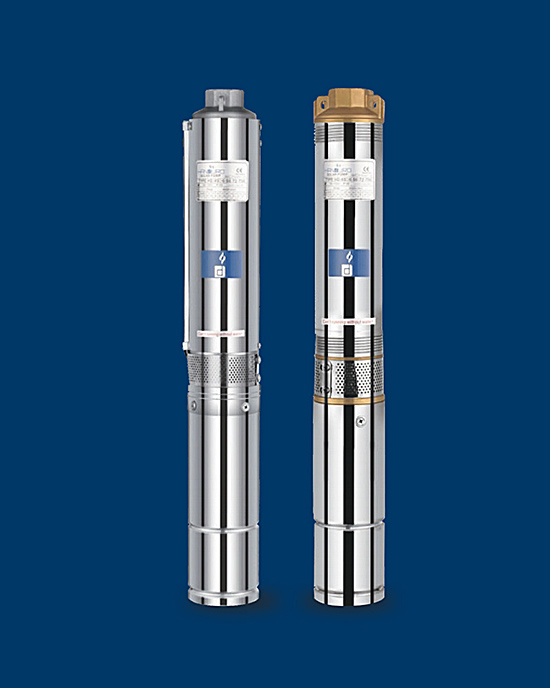

SD Series (with plastic impeller)
3.5SD
MOTOR AND PUMP
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Equip with start control box
NEMA dimension standards
Curve to lerance according to lSO 9001
OPERATING CONDITIONS
Maximum fluid temperature up to+35℃
Maximum sand content:0.25%
Maximumim immersion: 30m
Minimum well diameter: 3.5”(90mm)
APPLICATIONS
For water supply from wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
OPTIONS ON REQUEST
Special mechanical seal
Single phase motor with built-in capacitor

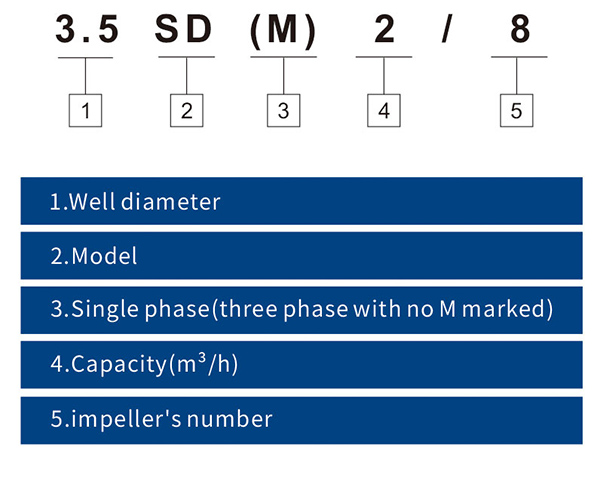

MODEL DESCRIPTION

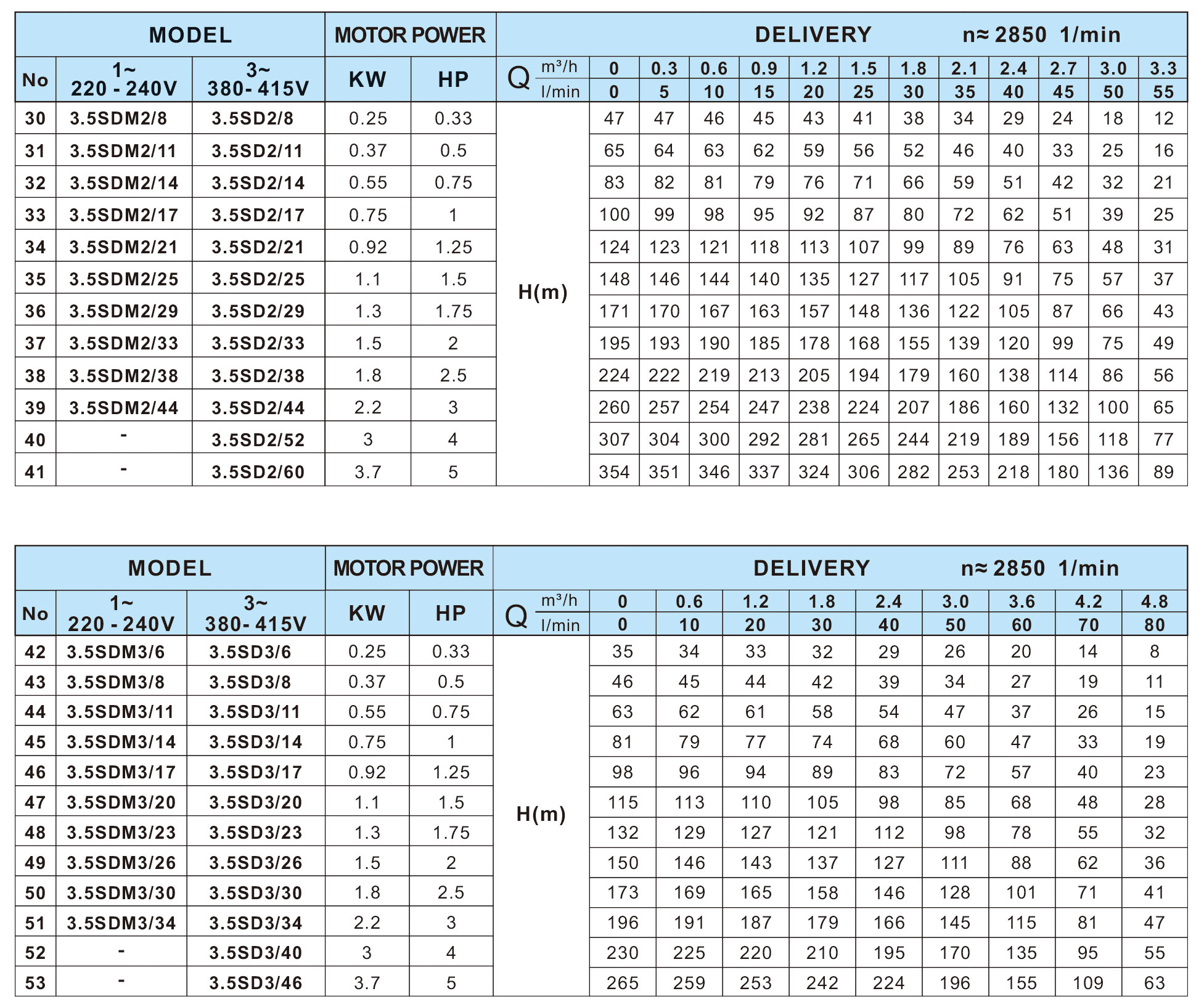

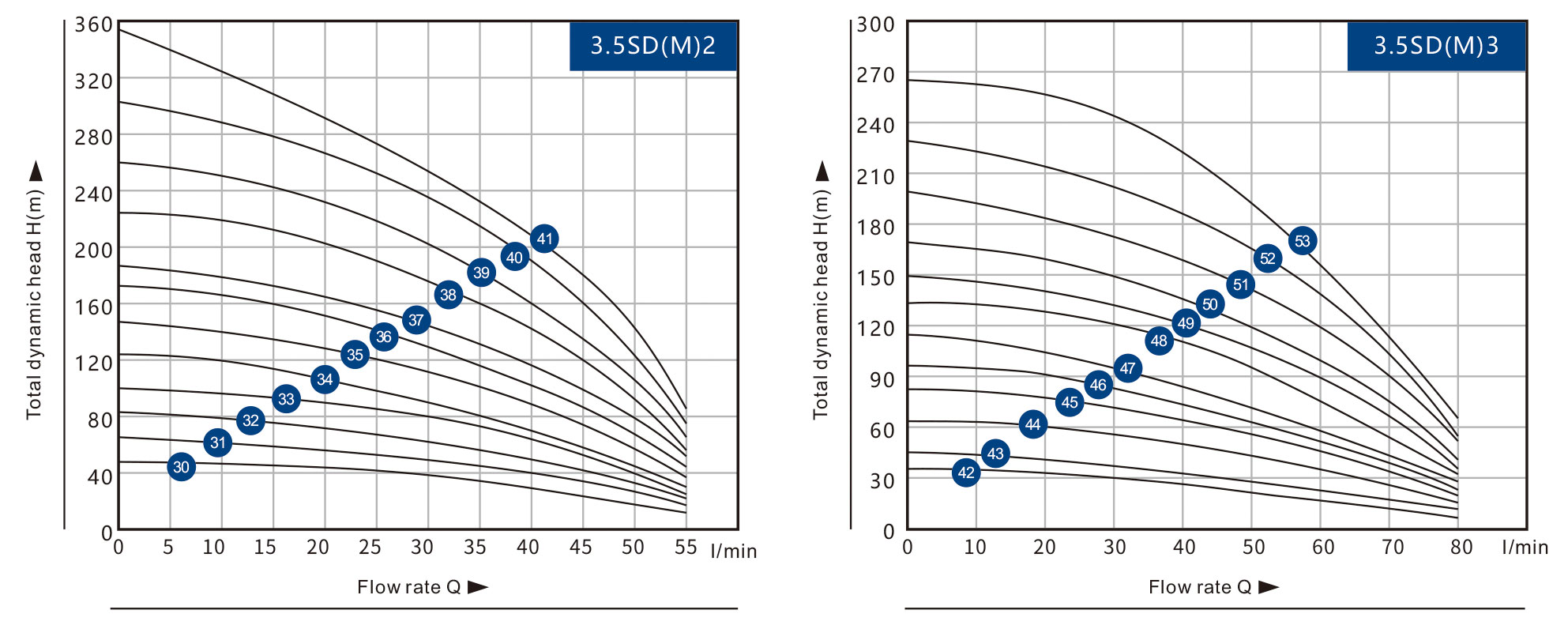

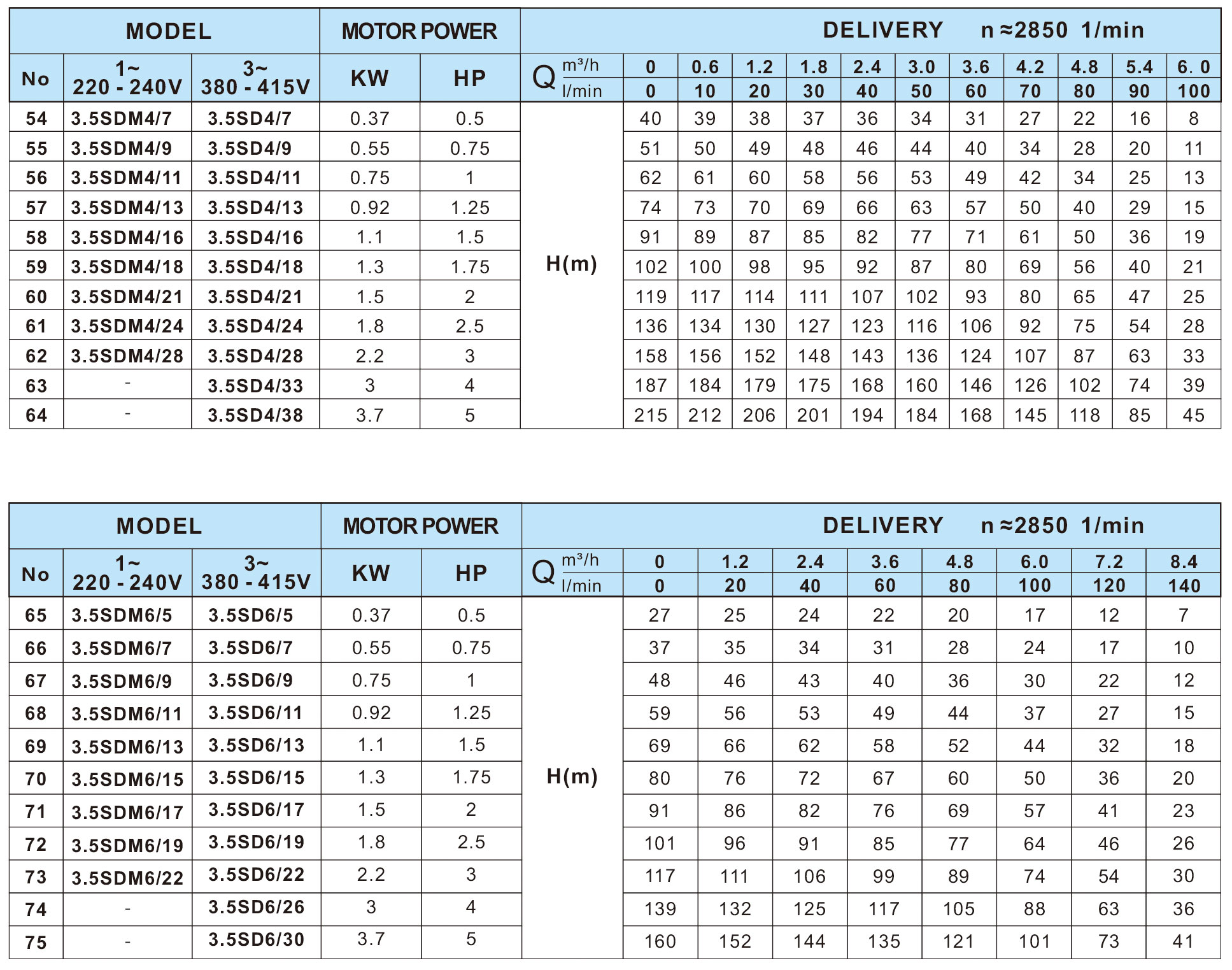

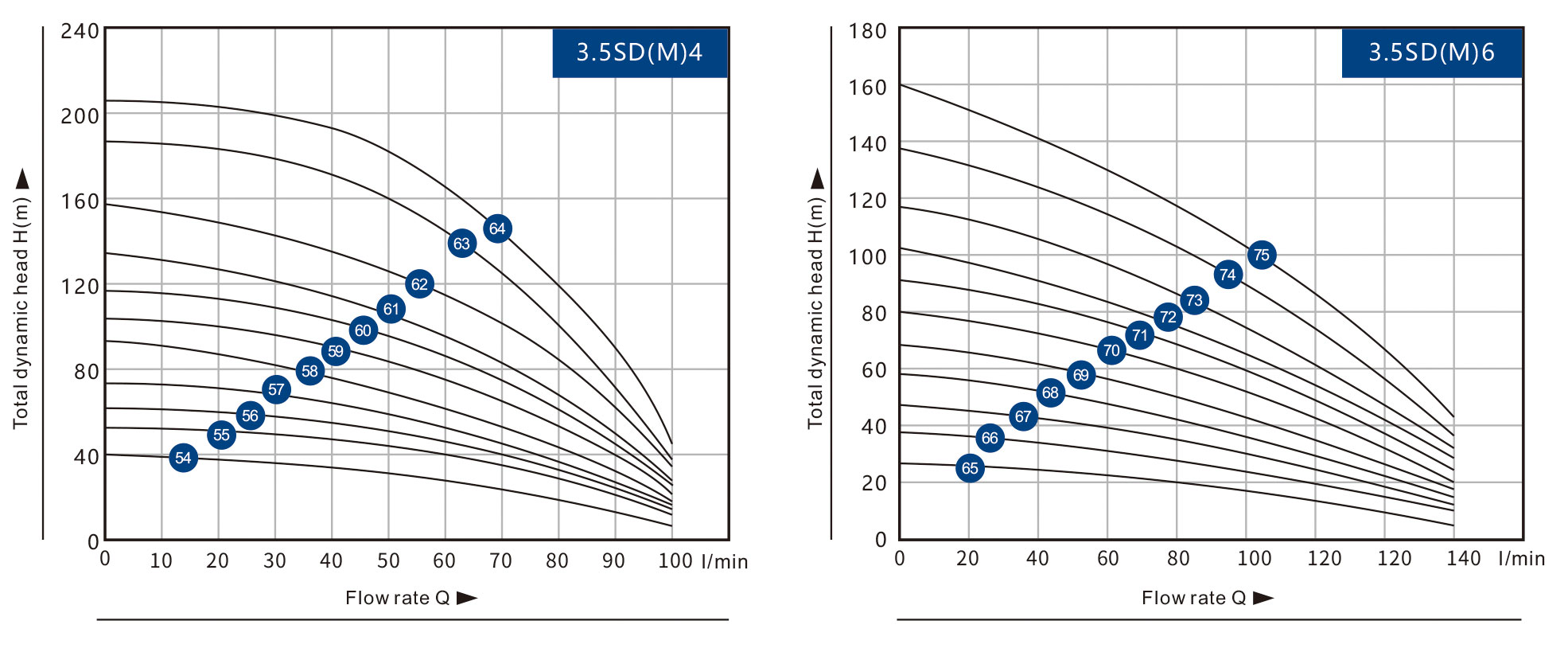

PERFORMANCE DATA 50Hz
